Ferro Resonant Transformer ( CVT )
General Technical Specifications of our Ferro Resonant Transformer (CVT)
| Input Voltage | 180 V – 260 V AC |
| Line Frequency | 50 Hz |
| Output Voltage | 220 – 230 V ± 1% |
| Output Step Load Response | 2 cycles (30 to 40 milliseconds) |
| Efficiency | 90% (approx) under full load conditions |

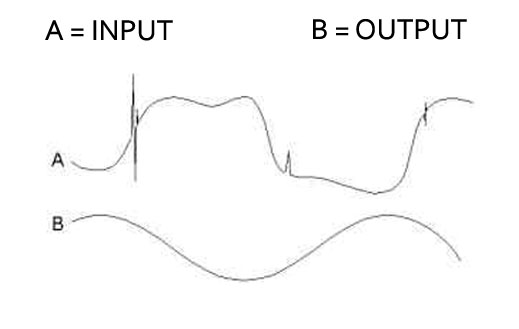

| Output Wave Form | Sinewave |
| Wave from Distortion | 5% (approx) under full load conditions |
| Load power Factor | 0.75% lag to 0.9% lead |
| mbient Temperature | -10°C to 50°C |
| Transformer Type | Ferro-Resonant |
| Effect of Frequency | 1.6 (approx) change in output voltage for every 1% change in line frequency |
Salient Features for CVT :
- No Semiconductor or moving part used, hence very high reliability.
- No feed back control used.
- Intrinsic current limiting and short circuit protection.
- Energy storage for line loss up to main 3ms at typical load.
- Short term over load capacity.
- Higher input voltage control range for load less than rated low.
