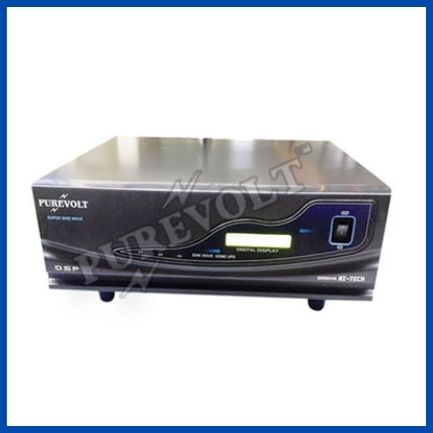

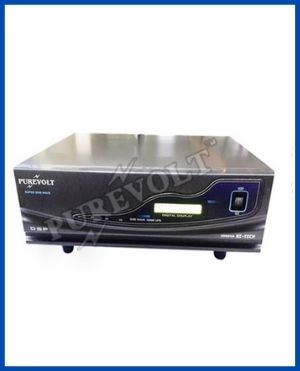

Power Inverter (DC AC CONVERTER)

Executive Series
Purevolt Power Inverter is the surest bet to mend your summers with peace. Other than supplying power, it does not make it's presence felt, sturdy and reliable every Inverter is built with top quality components. Affordable, designed to meet individual requirements. Purevolt's Inverter are available in different ranges from 500 VA to 5500 VA to suit every pocket and are easy to maintain as well.

The Purevolt's Power Inverter plays a dual role of charging the batteries when mains supply is present as well as regulating the output voltage and provides backup in absence of mains supply.

Rating available: 200 VA - 5500 VA

General Technical Specifications of our Power Inverter

Input Voltage Range 140 - 280 V AC
Input Frequency 47 - 53 Hz
DC Voltage 12 V / 24 V / 36 V/ 48 V/ 72 V DC
Output Voltage 200-240 VAC
Output Frequency 50 0.5 Hz
Wave Form PWM-Quasi Square Wave
Battery Type Lead Acid / Tubular
Indication Mains Normal, Mains High, Mains failure, Load on Mains / battery, Battery Charging, Battery Low, Inverter Overload.
Protections Under / Over Voltage, Overload, Low Battery & Short circuit
Alarms Low battery, Overload
Operating Temperature 0-50C
Rating Available 200 VA - 5500 VA


Salient Features of our Power Inverter:

  • Functions as an extended run standalone power source for household and industrial appliances.
  • High and low voltage cut-off for the safety of appliances attached through the inverter.
  • Battery run time is dependent upon the size of the battery connected.
  • Converts 12 volt DC to 220 volt AC.
  • Mosfet based PWM technology.
  • Controlled PWM based pulse charging.
  • Automatic Overload Reset with Audio/ Visual Alarm.
  • Automatic changeover to battery mode at Input below 125 V AC & above 275 V AC.
  • Automatic Alarm for Low Battery.
  • Low battery shutdown.
  • Low Noise (<35 db at 1mtr.)
