A servo voltage stabilizer is designed to protect industrial machinery from unstable input voltage. But if the servo stabilizer keeps tripping, simply resetting it every time is not the solution.

Repeated tripping usually means that a protection device inside or upstream of the stabilizer is detecting an abnormal condition. This could be an overload, incorrect KVA selection, short circuit, extreme voltage fluctuation, phase problem, overheating, or an internal electrical fault.

For a factory, CNC workshop, printing unit, manufacturing plant, laboratory, hospital, or other industrial facility, frequent stabilizer trips can result in machine shutdowns and unnecessary production losses.

“According to industrial asset management data, unplanned downtime costs large manufacturing facilities an average of $260,000 per hour, with the sector losing over $1.4 trillion annually to preventable shutdowns.” (Info2Soft: Unplanned Downtime Cost Benchmarks)

The right approach is to identify when the stabilizer trips, what the load is doing at that moment, and which protection device is operating.

Quick Diagnosis: Symptoms, Possible Causes, and Solutions

Symptom	Possible Cause	What to Check
Stabilizer trips when machines start	Starting current or overload	Connected load and stabilizer KVA
Stabilizer trips after adding new equipment	Total load exceeds capacity.	Recalculate total KVA
MCCB trips immediately.	Short circuit or severe overcurrent	Load circuit and cables
Trips occur only at certain times.	Input voltage outside operating range	Record incoming voltage.
One phase shows abnormal voltage/current.	Phase imbalance or phase failure	Check all three phases.
The stabilizer runs for some time and then trips.	Overheating or sustained overload	Load, cooling, and ventilation
Trips are random.	Loose termination or intermittent fault	Electrical connections and event history
Stabilizer trips even with low load	Internal component/protection fault	Qualified technician inspection

1. Servo Stabilizer Overload

One of the most common reasons for servo stabilizer tripping is excessive load.

Every stabilizer has a rated KVA capacity. If the connected machines demand more apparent power than the stabilizer can safely supply, current increases and overload protection may operate.

This frequently happens after a factory adds another motor, compressor, CNC machine, chiller, printing machine, pump, or production line without reviewing the stabilizer capacity.

What to check

Stabilizer rated KVA
Actual connected load
Simultaneous operating load
Motor starting current
Recent additions to the electrical system

Do not calculate capacity from kW alone; the power factor must also be considered.

For a step-by-step sizing method, use Purevolt’s Servo Stabilizer KVA Calculation Guide

2. Incorrect KVA Sizing

A stabilizer can be overloaded even when the operator believes the connected load is within its capacity. This usually happens because the stabilizer was incorrectly sized in the first place.

Motors, compressors, and other inductive industrial loads may have significant starting currents. Selecting a stabilizer almost equal to the normal running load leaves little reserve capacity when equipment starts or additional loads operate simultaneously.

If the stabilizer has been tripping since installation, incorrect sizing should be one of the first things investigated.

Total connected load
Power factor
Starting characteristics
Simultaneous operation
Reasonable safety margin
Potential future load additions

3. Short Circuit or Ground Fault

If the MCCB or another protection device trips immediately after switching on, there may be a short circuit or ground fault.

The fault may not necessarily be inside the servo stabilizer. It could be present in output cables, distribution panels, connected machinery, damaged insulation, terminal connections, or internal stabilizer components.

Repeatedly resetting a breaker after an immediate trip is unsafe. Isolate the load and have a qualified electrician determine whether the fault is on the input side, inside the stabilizer, or downstream of the output.

For safe servicing practices around hazardous energy, refer to OSHA’s lockout/tagout standard.

4. Severe Input Voltage Fluctuation

A servo stabilizer is designed to correct voltage variations, but every model has a specified input operating range. If incoming voltage falls below or rises above that range, under-voltage or over-voltage protection may disconnect the output.

For Indian specification context, the Bureau of Indian Standards lists IS 9815 for servo-motor operated automatic line voltage correctors.

A common mistake is selecting a stabilizer based only on KVA while ignoring the actual voltage conditions at the site.

Practical test

During normal working hours
During peak production
When large machines start
During low-demand periods
At times when tripping normally occurs

If the mains frequently moves outside the stabilizer’s input range, a model with a more suitable voltage range may be required.

5. Loose Electrical Connections

Loose terminals increase electrical resistance and can create local heating, voltage drop, arcing, and unstable current.

“Industry reliability reports show that loose or improperly torqued electrical connections are the leading cause of panel failures, contributing to over 30% of all electrical breakdowns in industrial facilities.” (Grace Technologies: Causes of Electrical Failures & Overheating in Panels)

Warning signs can include discoloration, abnormal heating, intermittent operation, a burning smell, or unexplained trips. Connections inside industrial electrical equipment should only be inspected and serviced after proper isolation by trained personnel.

Input terminals
Output terminals
MCCB connections
Busbars
Cable lugs
Contactor terminals
Neutral connections

6. Phase Failure or Phase Imbalance

Three-phase servo stabilizers require healthy incoming phases. If one phase is lost or significantly different from the others, the protection system may disconnect the load to prevent equipment damage.

Possible causes include utility-side phase problems, a blown fuse, a loose terminal, uneven single-phase loading, a cable fault, or a contactor problem. Measure all three phase-to-phase voltages and, where appropriate, operating current on each phase.

For a practical explanation of how phase voltage/current imbalance can lead to overload faults and downtime, see Fluke’s three-phase troubleshooting guidance.

7. Servo Stabilizer Overheating

Sometimes a stabilizer trips only after operating for 20 minutes, an hour, or several hours. This pattern can indicate a thermal problem.

Possible reasons include continuous overload, blocked ventilation, a failed cooling fan, excessive ambient temperature, dust accumulation, loose high-current connections, or poor maintenance.

If tripping occurs only after the enclosure becomes unusually hot, investigate the cause of overheating before restarting continuous operation.

8. Excessive Motor Starting Load

A plant may operate normally until a large motor, compressor, pump, chiller, or similar machine starts. Starting current can be considerably higher than normal running current.

To diagnose this problem, note whether tripping repeatedly corresponds with the starting of one particular machine. An electrician can measure startup current and compare it with stabilizer capacity and protective-device characteristics.

9. Protection Device or Setting Problem

The problem may occasionally be associated with the MCCB, overload relay, contactor, under/over-voltage protection, or another protective device rather than the voltage-regulation mechanism itself.

Protective devices should never be bypassed simply to stop nuisance tripping. The correct approach is to identify why the protection is operating and verify that the device rating and settings are appropriate for the installation.

10. Internal Servo Stabilizer Fault

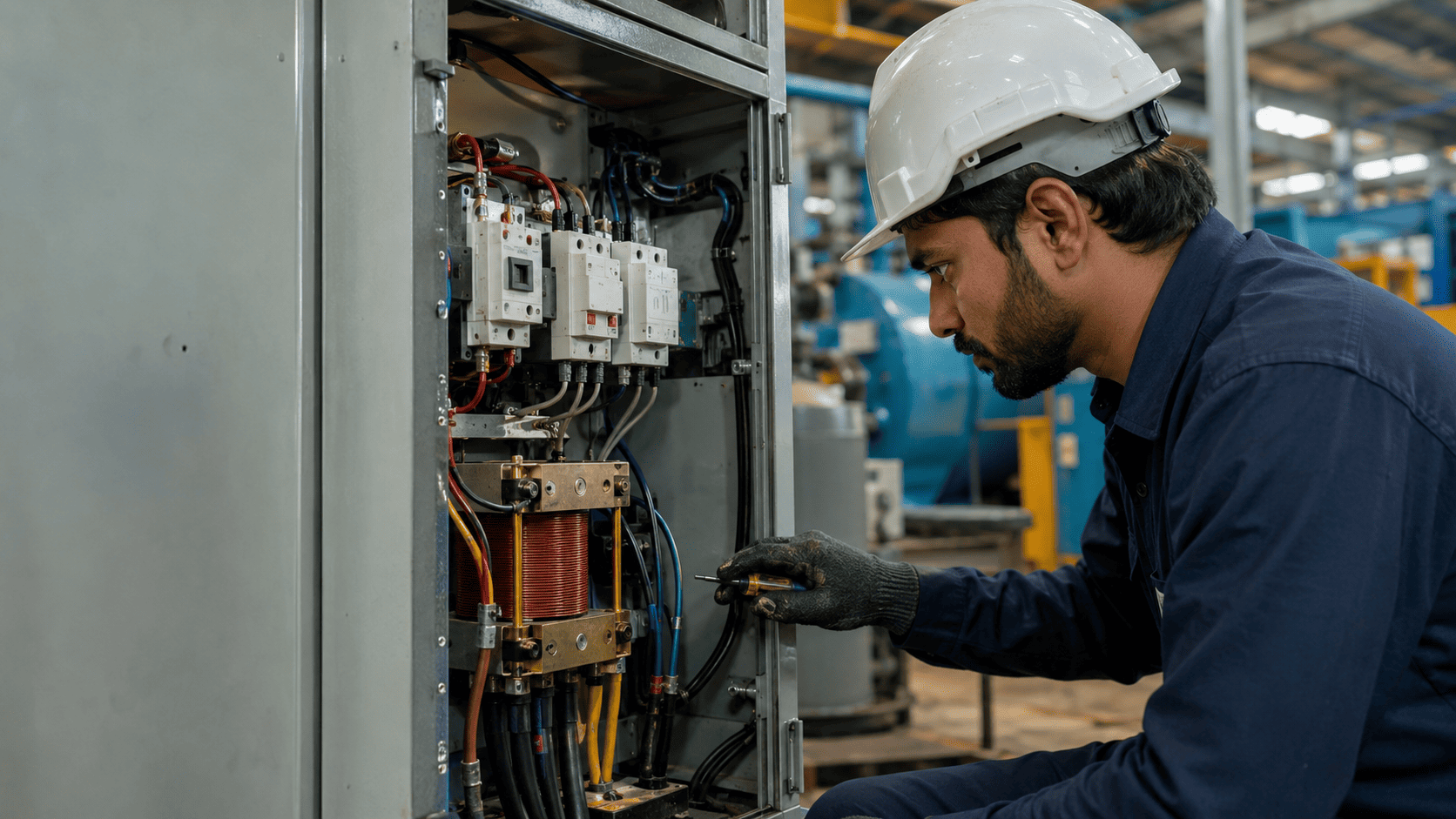

If the incoming voltage, load, cables, and external connections are normal but the stabilizer continues to trip, an internal inspection may be required.

Possible internal problems can involve the servo motor, variable autotransformer, buck-boost transformer, control circuit, contactors, protection circuit, cooling system, or internal wiring. These checks require technical expertise and should be performed by qualified service personnel.

What Can You Check Yourself?

A plant operator or maintenance team can safely observe:

Displayed input and output voltage
Stabilizer load percentage/current
Whether tripping occurs during machine startup
Which machines are operating when it trips
Whether new equipment was recently added
Unusual noise or smell
Visible ventilation blockage
Error or protection indication on the panel
Time and frequency of each trip

Keeping a simple trip log can make diagnosis significantly faster. Record the time, load, input voltage, machine operating, and protection indication whenever a trip occurs.

When Should You Call a Technician?

MCCB trips immediately after resetting
There is a burning smell.
Cables or terminals appear overheated.
Sparking or arcing is suspected.
One phase is missing
Input/output voltage is abnormal
The stabilizer trips even without significant load
Internal components require inspection
The same fault returns repeatedly

Do not open energized panels or bypass protective devices to keep production running.

Indian facilities should also follow the Central Electricity Authority safety and electric-supply regulations and applicable site procedures.

How to Prevent Repeated Servo Stabilizer Tripping

Most recurring problems can be reduced through correct equipment selection and preventive maintenance.

1. Select the correct KVA.

2. Provide adequate spare capacity.

3. Choose an input voltage range based on actual site measurements.

4. Balance three-phase loads.

5. Maintain clean and secure electrical connections.

6. Keep ventilation paths clear.

7. Inspect cooling fans periodically.

8. Do not keep adding load without recalculating capacity.

9. Investigate every recurring trip instead of repeatedly resetting the breaker.

10. Schedule preventive maintenance for critical industrial installations.

Is Your Existing Servo Stabilizer Undersized?

If your stabilizer keeps tripping after new machinery has been added, there is a strong possibility that your original KVA calculation is no longer suitable for the present load.

Before replacing components or increasing breaker ratings, calculate the actual load requirement.

For a broader view of construction types, phase options, and industrial configurations, see Purevolt’s Servo Voltage Stabilizer Manufacturer overview.

Purevolt offers single-phase and three-phase servo voltage stabilizers for industrial and commercial applications with different KVA ratings, input voltage ranges, cooling arrangements, and protection options.

Explore Purevolt’s Servo Voltage Stabilizer range for available industrial capacities and configurations.

Final Thoughts

A servo stabilizer tripping problem should be treated as a warning rather than an inconvenience.

Overload, incorrect KVA sizing, short circuits, extreme input voltage, loose connections, phase failure, excessive starting current, overheating, and internal faults can all cause repeated trips.

Start by identifying exactly when the trip occurs and what changes immediately before it. That information often separates a simple load-sizing problem from a genuine electrical fault.

If your existing servo stabilizer repeatedly trips or your factory load has changed, have the load, voltage range, and stabilizer capacity evaluated before continuing operation.

A correctly selected and maintained stabilizer should protect production equipment—not become a recurring cause of downtime.
